Make Your Own Realistic Rubber Tires: Tractor Wheel Tire Mold 3D Print Model

Introduction

Finding flexible, realistic scale tires with deep agricultural treads can be challenging for builders of dioramas, custom model tractors, and remote-controlled farm vehicles.

The Tractor Wheel Tire Mold 3D Print Model offers a practical workshop solution. By 3D printing this mold, you can cast your own custom rubber or silicone tires repeatedly, achieving high fidelity and realistic mechanical grip.

Key Design & Engineering Features

1. Two-Piece Split Mold Design

• Designed as two precision halves that fit together tightly.
• Accurately reproduces heavy-duty tractor chevron treads (deep lug pattern).
• The outer polygonal profile keeps the mold flat and steady on your table, preventing rocking while clamping or pouring.

2. Built-in Interlocking Alignment Pins

• Integrated alignment keys (registration tabs and slots) line up both mold sections exactly.
• Prevents misalignment between halves during clamping.
• Keeps parting lines thin and minimizes flash along the center seam of the finished tire.

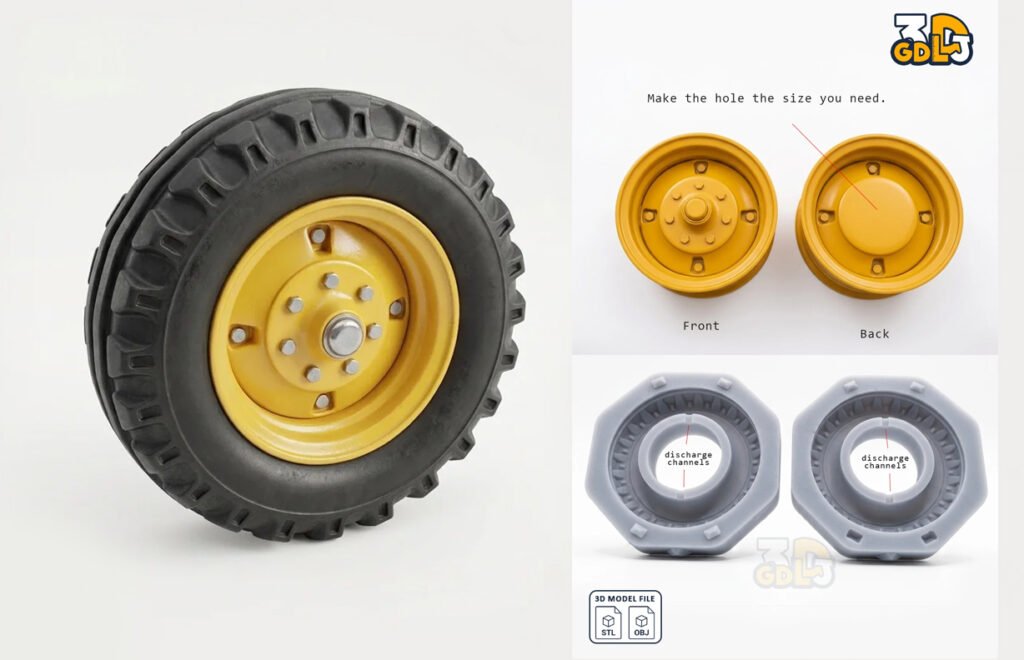

3. Integrated Discharge Channels

• Features dedicated venting channels cut along the inner ring.
• Allows trapped air pockets and excess liquid rubber to vent outward during the injection process.
• Ensures compound flows smoothly into every deep corner of the tread pattern without voids or bubbles.

4. Standard Digital Formats

• Supplied in ready-to-slice STL and OBJ file formats.
• Compatible with all popular 3D slicing software (Bambu Studio, PrusaSlicer, Cura, Chitubox, Lychee).

Step-by-Step: Printing and Casting Guide

Stage	Recommended Process	Key Benefit
1. 3D Printing	Resin (SLA / DLP) recommended	Produces an ultra-smooth inner surface, ensuring crisp tread edges and clean demolding.
2. Preparation	Apply mold release spray	Prevents silicone or urethane elastomers from sticking to the mold walls.
3. Compound Injection	Inject via syringe into channels	Syringe injection forces material into deep lugs and expels air pockets cleanly.
4. Demolding	Separate halves after full cure	Yields a flexible, durable tractor tire ready to mount onto scale wheels.

Suggested Casting Materials

• RTV Platinum/Tin-Cure Silicone: Excellent flexibility, tear strength, and scale realism; ideal for display models and dioramas.
• Flexible Polyurethane Rubber (Shore 40A–60A): Outstanding abrasion resistance, perfect for working RC tractors and motorized construction models.

Typical Applications

• RC Farm Machinery & Construction: Durable replacement tires for 1:14, 1:16, or 1:24 scale vehicles.
• Agricultural Dioramas: Realistic weathered wheels for tractors, harvesters, and implement trailers.
• Cost-Effective Small Batch Production: Print the mold once and cast as many tires as your projects need.

Product Specifications

• Product Name: Tractor Wheel Tire Mold 3D Print Model
• Configuration: 2-part interlocking mold with built-in air/discharge channels
• Print Technology: Resin (SLA/DLP) or fine-layer FDM
• File Formats: STL, OBJ
